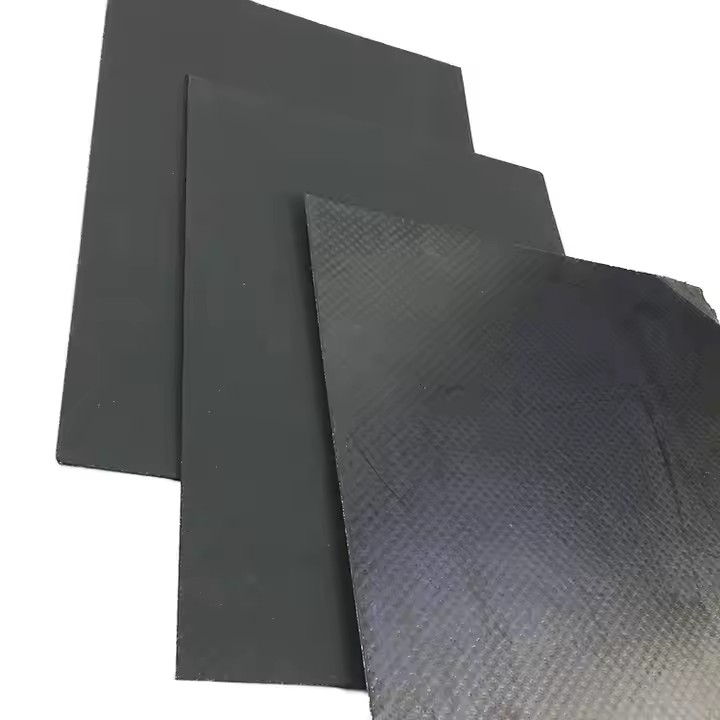

Graphite Sheet with Wire Mesh is made of expanded flexible graphite, reinforced by a metal mesh of 304 or 316 or Carbon steel, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3.
Application:
Made for various gaskets.
Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,
Technical data:
Temperature: -200 up to 550°C
Pressure: up to 400 bar
PH Range: 0 – 14
Advantage:
Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
Media:
Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
Size:
1000 x 1000 x 1.0; 1.5; 2.0; 3.0mm, 1000 x 2000 x 1.0; 1.5; 2.0; 3.0mm
1500 x 1500 x 1.0; 1.5; 2.0; 3.0mm, 1500 x 2000 x1.0; 1.5; 2.0; 3.0mm
| Item |
Nuclear grade |
Industrial grade |
| Density g/cm3 |
1.0 |
1.0 |
| Carbon Content ≥% |
99.5 |
98/99 |
| Tensile strength ≥Mpa |
5 |
4 |
| Compressibility ≥% |
30 |
30 |
| Recovery ≥% |
15 |
15 |
| Sulphur Content ≤% |
700 |
1200 |
| Chlorine Content ≤% |
25 |
50 |
| Stress relaxation rate % |
10 |
10 |
| loss on ignition ≤% |
0.5 |
2.0 |
| Temperature: |
-240~500°C under oxidizing environment,-240~3500°C under non-oxidizing environment |
| PH Range |
0 - 14 |
Size:
| Item |
Sheets |
Rolls |
| Length |
1000, 1500mm |
30~100m |
| Width mm |
5~1000, 1500 |
3~1000~1500 |
| Thickness mm |
0.5~3 |
0.2~1.1 |
| $1.98 / kg |
$1.65 / kg |
$1.34 / kg |
| 200-999 kg |
1000-4999 kg |
≥5000 kg |
| Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff. |
Get the latest preferential policies
Lead time: 15~20 Workdays
Payment: 30% deposite
Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.

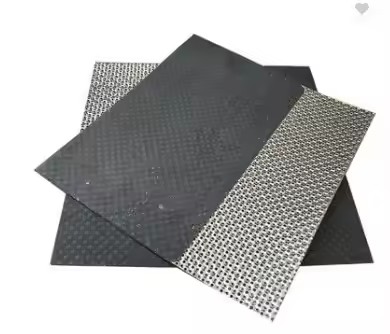

Picture Example:
1. Who are we?
We are based in Hebei, China, start from 1993, sell to Eastern Europe (20.00%), South America (20.00%), Southeast Asia (20.00%), Mid East (10.00%), Oceania (10.00%), Africa (10.00%), North America (10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
Sealing Gaskets Sheets Series, beater paper, cylinder head gasket sheet, thermal insulation materials, braided-packing, and all kinds of sealing materials.
4. Why should you buy from us not from other suppliers?
OEM service, with our quick response. High quality control, inspection for each step. Superior after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW.
Accepted Payment Currency: USD, EUR, HKD, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash, Escrow.
Language Spoken: English, Chinese, Portuguese, Russian
