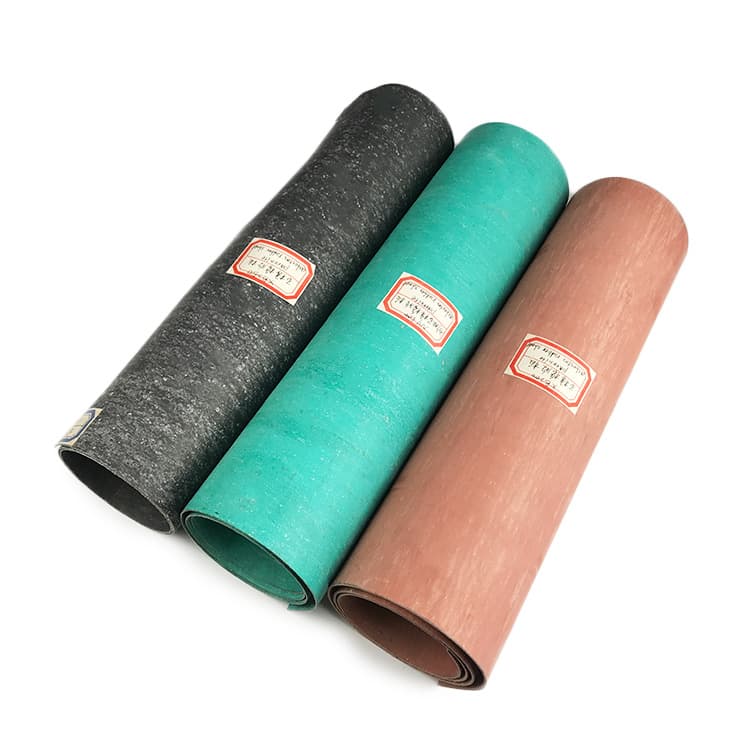

Paronite Gasket Material | Hongwo Sealing Sheet

Asbestos Rubber Sheet/

Paronite Gasket Material

Alias:Asbestos Rubber Sheet

Processing Service:Moulding, Cutting

Model Number:Support customization

Brand Name:HONGWO

Place of Origin:Hebei, China

Payment Type:T/T, L/C, PayPal, Western Union, Cash, Escrow.

Delivery Terms:FOB, CIF, EXW.

Payment Currency:USD, EUR, HKD, CNY.

Lead time (days):15~60

Delivery:By sea or by air

Packing:In wooden pallet

  • Product Details
  • Specifications
  • Prices & Lead time
  • Packing & Delivery
  • FAQ

Manufacturers make Paronite by pressing asbestos, rubber, and fillers together. It mainly includes high-, medium-, and low-pressure paronite, oil-resistant paronite, and acid- and alkali-resistant paronite. Depending on its formula, process, and performance, each has different applications. As a sealing material for pipe and high-pressure vessel flanges, it can make gaskets. They have good sealing and acid-alkali resistance. When in use, it is generally cut into various shapes and sizes of gaskets as required.

Paronite

Paronite

The asbestos materials used in the manufacture of paronite include chrysotile and crocidolite.

Chrysotile is a type of serpentine asbestos. It is mainly magnesium silicate with about 13% crystalline water. It has good heat and alkali resistance and high tensile strength. But it has poor acid resistance. Manufacturers make most paronite from it.

Crocidolite is an amphibole asbestos. Its main component is a silicate. It contains 2.5 to 3.5% crystalline water, very little magnesium oxide, and 18 to 24% iron oxide. Crocidolite has good heat and acid resistance. They use it to make acid-resistant paronite.

Asbestos fiber quality greatly affects paronite’s performance. Asbestos fibers must have high tensile strength and good heat resistance. They must be of a certain length and be flexible and elastic. Use grade 2 and 3 asbestos fibers in high-pressure, oil-resistant paronite above 400 grade.

Due to paronite’s usage restrictions, more non-paronite materials replace the original asbestos boards.

Available Sizes:   Thickness: 0.3mm to 5mm

1500 x 1500mm ,  1500 x 1360mm,  1500 x 1000mm,  1270 x 1270mm.

The other size is optional or according to the requirements of customers.

At the same time, steel wire net inserted (coated graphite one side or two side) is available.

Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.

Product  data  sheet

Item NY510 NY400 NY300 NY250 NY150 HNY300
Horizontal Strain MPa≥ 18.0 15.0 12.7 11.0 9.0 12.7
Compressibility %                                            7~17
Rebound degree                     50       45       35       50
Worm change Relaxation rate  % ≤                            45     _ 45
Density   g/cm³  1.9 ~ 2.0
Nitrogen leakage rate  [(ml/h.mm)]    ≤                                 300
Normal temperature Pliability Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack
Dipped in IRM903 oil

with 149℃ for 5 hours

Horizontal Strain MPa≥   15.0     12.0               9.0      7.0      5.0       9.0
Weight increasing % ≤                                           30
Appearance change                                    _   No bubble
Dipped in ASTM fuel oil B with 21℃-30℃ for 5 hours Thickness increasing%                              0 ~ 20        _     0 ~ 20
Pliability Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack
Cauterization to the metal material                                 _ No Cauterization
Normal temperature

 oil Airtightness

Medium pressure MPa    18      16       15      10       8       15
 Airtightness request                                 Keep for 30min, no leak



classify Grade  Recommended Uses range
General industrial use

Oil-resisting CAF jointing

NY510 Max working temperature:510℃  max working pressure:5.0MPa
NY400 Max working temperature:400℃  max working pressure:4.0MPa
NY300 Max working temperature:300℃  max working pressure:3.0MPa
NY250 Max working temperature:250℃  max working pressure:2.5MPa
NY150 Max working temperature:150℃  max working pressure:1.5MPa
Aviation industrial use HNY300 Used to Blow 300℃ aircraft fuel,Petroleum base lubricating oils and pneumatic system seal gasket
$3 / kg $2.8 / kg $2.5 / kg
200-999 kg 1000-4999 kg ≥5000 kg
Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff.

Get the latest preferential policies

Lead time: 15~20 Workdays
Payment: 30% deposite

Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.
Picture Example:

1. Who are we?
We are based in Hebei, China, start from 1993, sell to Eastern Europe (20.00%), South America (20.00%), Southeast Asia (20.00%), Mid East (10.00%), Oceania (10.00%), Africa (10.00%), North America (10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
Sealing Gaskets Sheets Series, beater paper, cylinder head gasket sheet, thermal insulation materials, braided-packing, and all kinds of sealing materials.

4. Why should you buy from us not from other suppliers?
OEM service, with our quick response. High quality control, inspection for each step. Superior after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW.
Accepted Payment Currency: USD, EUR, HKD, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash, Escrow.
Language Spoken: English, Chinese, Portuguese, Russian
