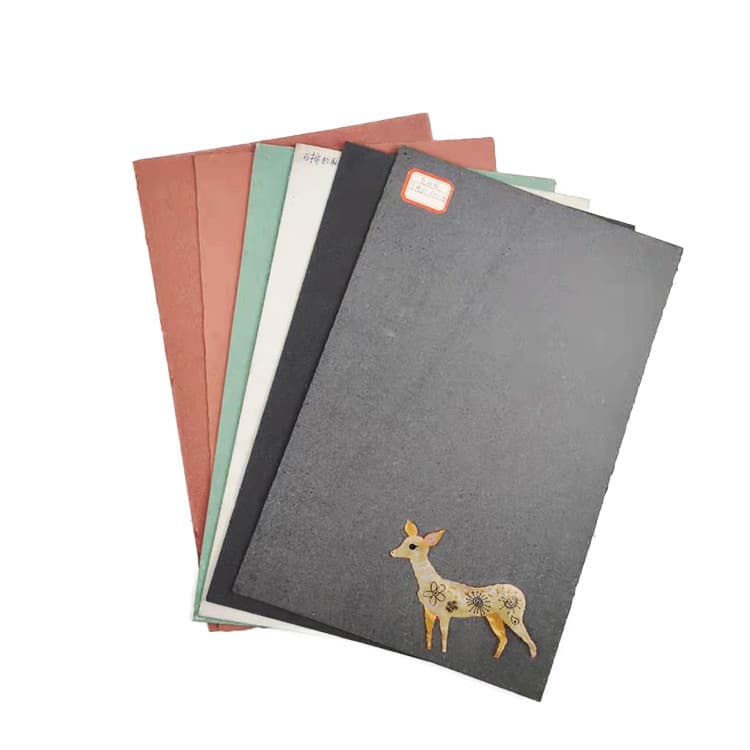

Non-asbestos Beater Sheet/Paper

Alias:Non-asbestos Beater Paper

Processing Service:Moulding, Cutting

Model Number:Support customization

Brand Name:HONGWO

Place of Origin:Hebei, China

Payment Type:T/T, L/C, PayPal, Western Union, Cash, Escrow.

Delivery Terms:FOB, CIF, EXW.

Payment Currency:USD, EUR, HKD, CNY.

Lead time (days):15~60

Delivery:By sea or by air

Packing:In wooden pallet

  • Product Details
  • Specifications
  • Prices & Lead time
  • Packing & Delivery
  • FAQ

The other name: Non-asbestos paper, asbestos free paper,Non-asbestos latex paper, Non-asbestos emulsion paper.

It is 100% asbestos free.

Passed non-asbestos content certification of the third-party testing organization.

Passed ROHS certification of the third-party testing organization.

Non-asbestos beater paper,it is made from synthetic latex, aramid fiber and filling material.It is an ideal substitute of asbestos latex sheet/paper.After combining with tanged tinplate,the non-asbestos composite beater sheet is ideal for various kind of cylinder head gasket and other automotive accessory gaskets. Especially for petrol engine kind.

This series include: Non-asbestos beater paper, Vulcanized non-asbestos beater sheet,

1) Non-asbestos beater paper:It don’t vulcanize,usually it is used to be composited with tinplate to non-asbestos composite sheet for cylinder head gasket sheet material.

2) Vulcanized non-Asbestos beater sheet, it is based non-asbestos beater paper and by vulcanized, it has smooth face and high density,it can be cut into all kinds of gasket directly for engine sump,gearbox seal gasket.

Usage: Suitable to sealing lubricating oil at highest temperature -80~250℃
Normal color: Grey, Black.

Standard size:

Thickness: 0.3~1.2mm

Width: 1500mm  Tolerance: ±5%

Length: 5m,10m or its integral multiple

Special sheet sizes and other size thickness upon request.

Item Kind
Non-Asbestosbeater paper Vulcanized asbestosbeater sheet
Density g/cm3 1.30±0.1 1.45±0.1
Transverse Tensile strength   MPa ≥ 6.0 ≥ 12
Burning Loss  % ≤35 ≤40
Creep relaxation rate (100℃ x 22h)  % ≤40 ≤35
Compression Properties  (100℃ x 22h)  % Compressibility    % 20±7 15±5
Recovery     % ≥30 40
Anti-fluid IRM #903 Normal Oil 150℃ x h Change in thickness % ≤20 ≤ 20
Change in weight % ≤50 ≤35
ASTM Fuel BRT x 5h Change in thickness % ≤15 ≤20
Change in weight % ≤45 ≤30
H2O:CH2OH)= 1:1, 100℃ x 5h Change in thickness % ≤25 ≤30
Change in weight % ≤55 ≤45
Water 100℃ x 1h Change in thickness % ≤20 ≤ 25
Change in weight % ≤40 ≤35
Heat-resistant performance Heat-resistant ageing

 150℃ x 22h

Compressibility    % 15±7 10±5
Recovery     % ≤30 ≤45
Change in thickness % -5 ~ 5 -5 ~ 5
Change in weight % -3 ~ 3 -3 ~ 3
Nitrogen-sealed Ml/min ≤3
$0.88 / kg $0.77 / kg $0.66 / kg
200-999 kg 1000-4999 kg ≥5000 kg
Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff.

Get the latest preferential policies

Lead time: 15~20 Workdays
Payment: 30% deposite

Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.
Picture Example:
