High Temperature Resistance Asbestos Jointing Rubber Sheet | Hongwo Sealing Sheet

Asbestos Rubber Sheet/

High Temperature Resistance Asbestos Jointing Rubber Sheet

Alias:Asbestos Rubber Sheet

Processing Service:Moulding, Cutting

Model Number:Support customization

Brand Name:HONGWO

Place of Origin:Hebei, China

Payment Type:T/T, L/C, PayPal, Western Union, Cash, Escrow.

Delivery Terms:FOB, CIF, EXW.

Payment Currency:USD, EUR, HKD, CNY.

Lead time (days):15~60

Delivery:By sea or by air

Packing:In wooden pallet

  • Product Details
  • Specifications
  • Prices & Lead time
  • Packing & Delivery
  • FAQ

The high-temperature resistance of asbestos rubber sheets varies. It depends on the product type and the manufacturing process.

High Temperature Resistance Asbestos Jointing Rubber Sheet

High Temperature Resistance Asbestos Jointing Rubber Sheet

Asbestos rubber sheets are a high-temperature sealing material. You can use them for long periods at 150 to 200 °C. They will keep their properties and sealing performance.

But different product series and specs have varying limits for heat and pressure. For instance, within the XB series, XB-150 can withstand 150℃, and XB-400 can tolerate up to 400℃. It has much higher pressure resistance too.

Some high-end asbestos rubber products resist temps up to 500 to 550 °C. Their precise blend of components and better manufacturing cause this. When selecting a product, consider the usage environment, temperature, and pressure. This ensures it meets your needs and works well over time.

Asbestos poses health risks. Everyone must follow safety regulations with great attention to detail. Also, take protective measures during use.

Item NY510 NY400 NY300 NY250 NY150 HNY300
Horizontal Strain MPa≥ 18.0 15.0 12.7 11.0 9.0 12.7
Compressibility %                                            7~17
Rebound degree                     50       45       35       50
Worm change Relaxation rate  % ≤                            45     _ 45
Density   g/cm³  1.9 ~ 2.0
Nitrogen leakage rate  [(ml/h.mm)]    ≤                                 300
Normal temperature Pliability Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack
Dipped in IRM903 oil

with 149℃ for 5 hours

Horizontal Strain MPa≥   15.0     12.0               9.0      7.0      5.0       9.0
Weight increasing % ≤                                           30
Appearance change                                    _   No bubble
Dipped in ASTM fuel oil B with 21℃-30℃ for 5 hours Thickness increasing%                              0 ~ 20        _     0 ~ 20
Pliability Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack
Cauterization to the metal material                                 _ No Cauterization
Normal temperature

 oil Airtightness

Medium pressure MPa    18      16       15      10       8       15
 Airtightness request                                 Keep for 30min, no leak



classify Grade  Recommended Uses range
General industrial use

Oil-resisting CAF jointing

NY510 Max working temperature:510℃  max working pressure:5.0MPa
NY400 Max working temperature:400℃  max working pressure:4.0MPa
NY300 Max working temperature:300℃  max working pressure:3.0MPa
NY250 Max working temperature:250℃  max working pressure:2.5MPa
NY150 Max working temperature:150℃  max working pressure:1.5MPa
Aviation industrial use HNY300 Used to Blow 300℃ aircraft fuel,Petroleum base lubricating oils and pneumatic system seal gasket
$1.5 / kg $1.4 / kg $1.3 / kg
200-999 kg 1000-4999 kg ≥5000 kg
Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff.

Get the latest preferential policies

Lead time: 15~20 Workdays
Payment: 30% deposite

Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.

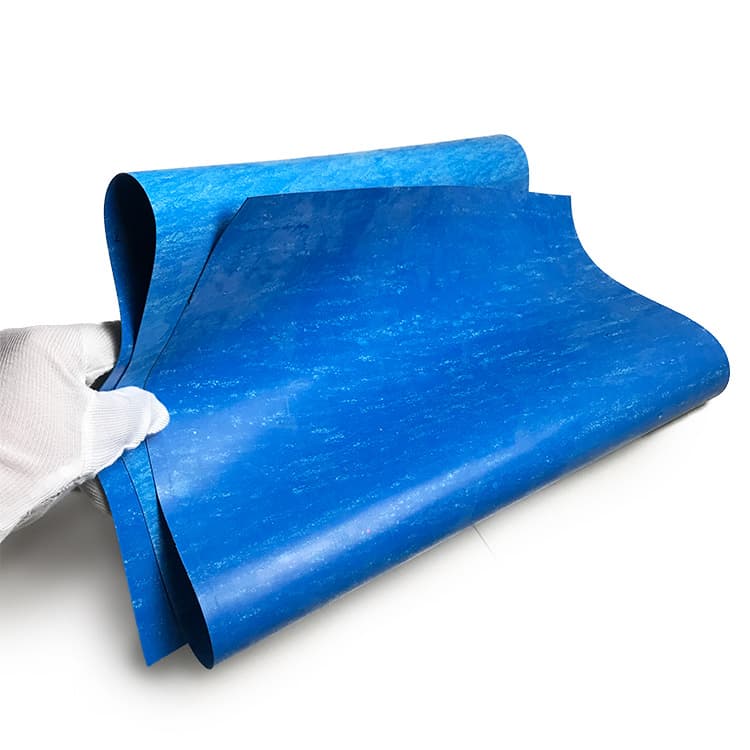

Picture Example:

1. Who are we?
We are based in Hebei, China, start from 1993, sell to Eastern Europe (20.00%), South America (20.00%), Southeast Asia (20.00%), Mid East (10.00%), Oceania (10.00%), Africa (10.00%), North America (10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
Sealing Gaskets Sheets Series, beater paper, cylinder head gasket sheet, thermal insulation materials, braided-packing, and all kinds of sealing materials.

4. Why should you buy from us not from other suppliers?
OEM service, with our quick response. High quality control, inspection for each step. Superior after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW.
Accepted Payment Currency: USD, EUR, HKD, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash, Escrow.
Language Spoken: English, Chinese, Portuguese, Russian
