High Pressure Asbestos-free Vulcanized Beater Paper | Hongwo Sealing Sheet

Beater Sheet/Paper/

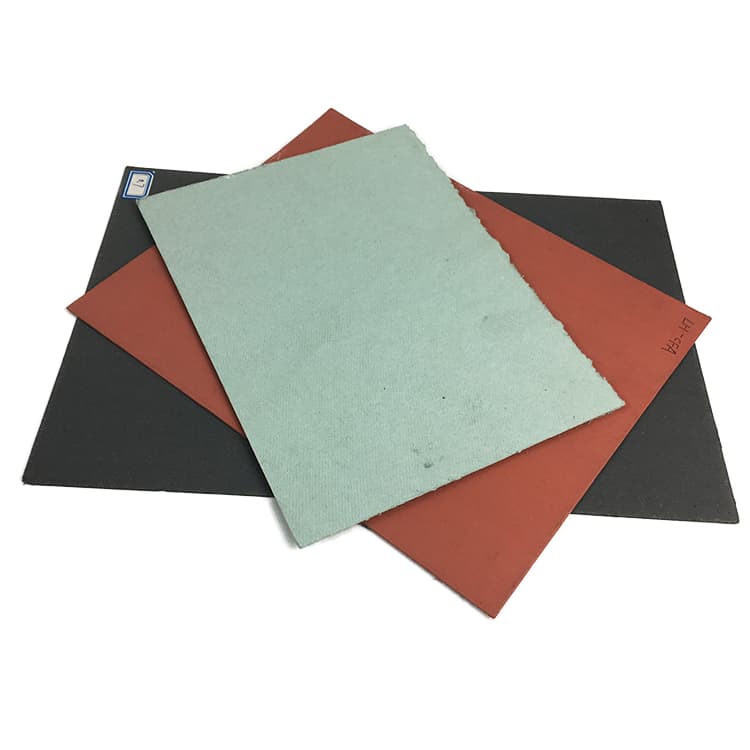

High Pressure Asbestos-free Vulcanized Beater Paper

Alias:Asbestos-free Vulcanized Beater Paper

Processing Service:Moulding, Cutting

Model Number:Support customization

Brand Name:HONGWO

Place of Origin:Hebei, China

Payment Type:T/T, L/C, PayPal, Western Union, Cash, Escrow.

Delivery Terms:FOB, CIF, EXW.

Payment Currency:USD, EUR, HKD, CNY.

Lead time (days):15~60

Delivery:By sea or by air

Packing:In wooden pallet

  • Product Details
  • Specifications
  • Prices & Lead time
  • Packing & Delivery
  • FAQ

Description:

High pressure asbestos-free vulcanized beater paper is made from synthetic latex, plants fiber and filling material. The production is used for position of lubrication system, which has the property of good compressibility and coefficient of resilience, in addition, the inside of gasket can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which
affected self-sealing.

Vulcanized non asbestos latex sheet, it is by vulcanizing, it has smooth face and high density, it can be cut into all kinds of gasket directly.

APPLICATION:

Used in Automobile, farm machinery, motors, engineering etc. It can be used in oil system and water supply system at temperature 200 Degrees.

Normal color: Grey, Black, White,Green,Blue,Red and etc.

DIMENSIONS:
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200mm; 1300mm;1500mm

Thickness: 0.4~2.0mm
Thickness
0.5mm ~ 2.0mm
Size
500mm x500mm
500mm x 1000mm
1000mm x 1000mm
1200mm x500mm
1200mm x 1000mm
1500mm x 1000mm
Color
Grey, Black, White, Green, Red
The other size is according to the requirements of customers.
Product Data Sheet
Item
Type
Regular Beater Paper
Vulcanized Beater Sheet
Density g/cm3
1.0~1.2
1.3~1.5
Tensile strength ≥Mpa
1.5~5
2.5~8
Compressibility ≥%
40±7
20±5
Recovery ≥%
20
40
Burning Loss %≤
24
24
Stress relaxation ≤%
35
30
Water contents ≤%
3
3
$1.23 / kg $1.15 / kg $1.05 / kg
200-999 kg 1000-4999 kg ≥5000 kg
Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff.

Get the latest preferential policies

Lead time: 15~20 Workdays
Payment: 30% deposite

Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.

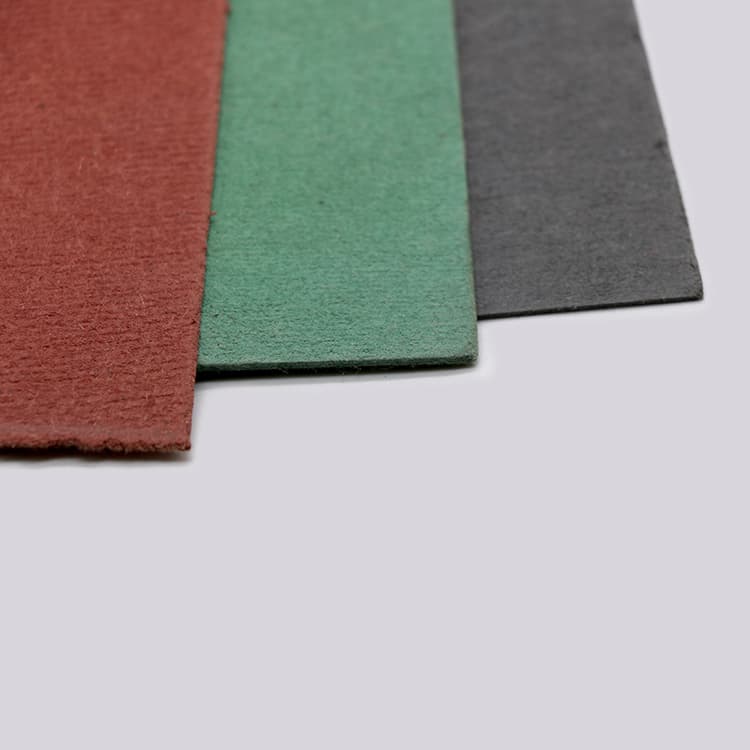

Picture Example:

1. Who are we?
We are based in Hebei, China, start from 1993, sell to Eastern Europe (20.00%), South America (20.00%), Southeast Asia (20.00%), Mid East (10.00%), Oceania (10.00%), Africa (10.00%), North America (10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.what can you buy from us?
Sealing Gaskets Sheets Series, beater paper, cylinder head gasket sheet, thermal insulation materials, braided-packing, and all kinds of sealing materials.

4. Why should you buy from us not from other suppliers?
OEM service, with our quick response. High quality control, inspection for each step. Superior after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW.
Accepted Payment Currency: USD, EUR, HKD, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash, Escrow.
Language Spoken: English, Chinese, Portuguese, Russian
