Asbestos Rubber Sheet With Wire Net Inserted | Hongwo Sealing Sheet

Asbestos Rubber Sheet/

Asbestos Rubber Sheet With Wire Net Inserted

Alias:Asbestos Rubber Sheet

Processing Service:Moulding, Cutting

Model Number:Support customization

Brand Name:HONGWO

Place of Origin:Hebei, China

Payment Type:T/T, L/C, PayPal, Western Union, Cash, Escrow.

Delivery Terms:FOB, CIF, EXW.

Payment Currency:USD, EUR, HKD, CNY.

Lead time (days):15~60

Delivery:By sea or by air

Packing:In wooden pallet

  • Product Details
  • Specifications
  • Prices & Lead time
  • Packing & Delivery
  • FAQ

Other name in world : asbestos jointing sheet, compressed asbestos fiber jointing sheet, CAF gasket sheet, asbestos sheet, paronite, etc.

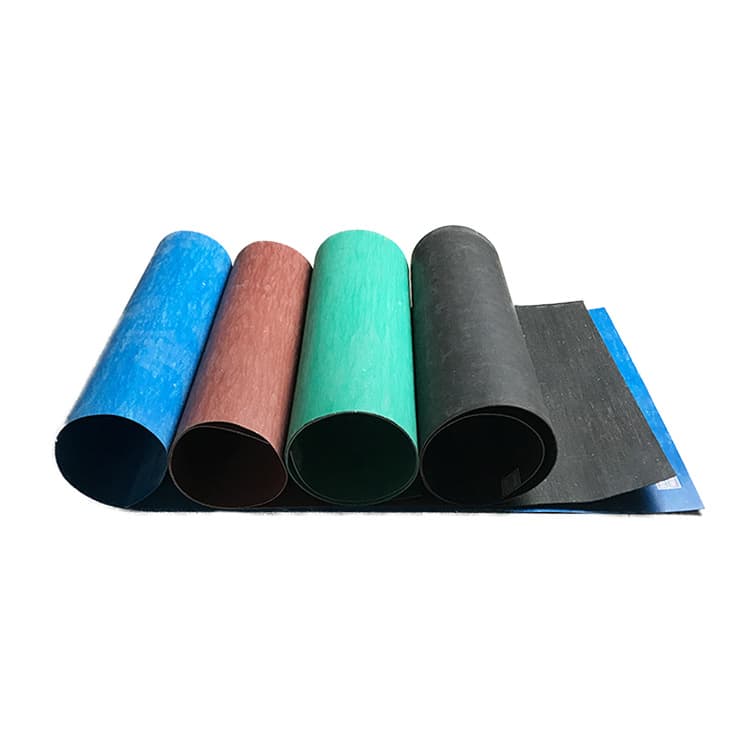

Asbestos Rubber Sheet With Wire Net Inserted

Asbestos Rubber Sheet With Wire Net Inserted

Made of good asbestos Fiber rubber with steel wire mesh inserted and compound heating and compression molding it (it can be coated with graphite on the surface one side or two side).

Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline.

Working pressure : 1.5~14 Mpa, Max working temperature: 250 ~ 450℃

This series include: JXB250, JXB350,JXB450.

Available Sizes:

Thickness: 1.0 to 6mm

4500 x 1500mm,   4100 x 1500 mm,  3850 x 1300 mm,  1270 x 1270 mm,

1500 x 2000 mm,  1500 x 1500 mm ,  1500 x 1350 mm,  1500 x 1000 mm ,

The other size is optional or according to the requirements of customers.

Packing: in wooden pallet of about 1000 kg, 2000kgs net each.

Common sizes:
1500 x 1500 x (0.5-5mm), 1500 x 1350 x (0.5-5mm), 1500 x 1000 x (0.5-5mm), 1500 x 4500 x (0.5-5mm), 1500 x 4000 x (0.5-5mm), 1300 x 3810 x (0.5-5mm)

Item JXB450 JXB350 JXB250
Tensile strength MPa  21.0 9.0 7.0
Burning Loss %≤ 27 29
Compressibility %  17
Rebound degree 42 40
Creep Stress-relaxation ≤                            50
Aging Coefficient ≥ 0.9
Density   g/cm³ 1.9  2.0
Normal temperature Pliability Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness), No crack
Nitrogen leakage rate  [(ml/h.mm)]    ≤ 500
Steam Airtightness Temperature   440450 340350 240250
Steam pressure MPa 1314 910 78
Request Keep for 30 minutes without Leakage
$1.8 / kg $1.5 / kg $1.3 / kg
50-499 kg 500-999 kg ≥1000 kg
Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff.

Get the latest preferential policies

Lead time: 15~20 Workdays
Payment: 30% deposite

Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.
Picture Example:
